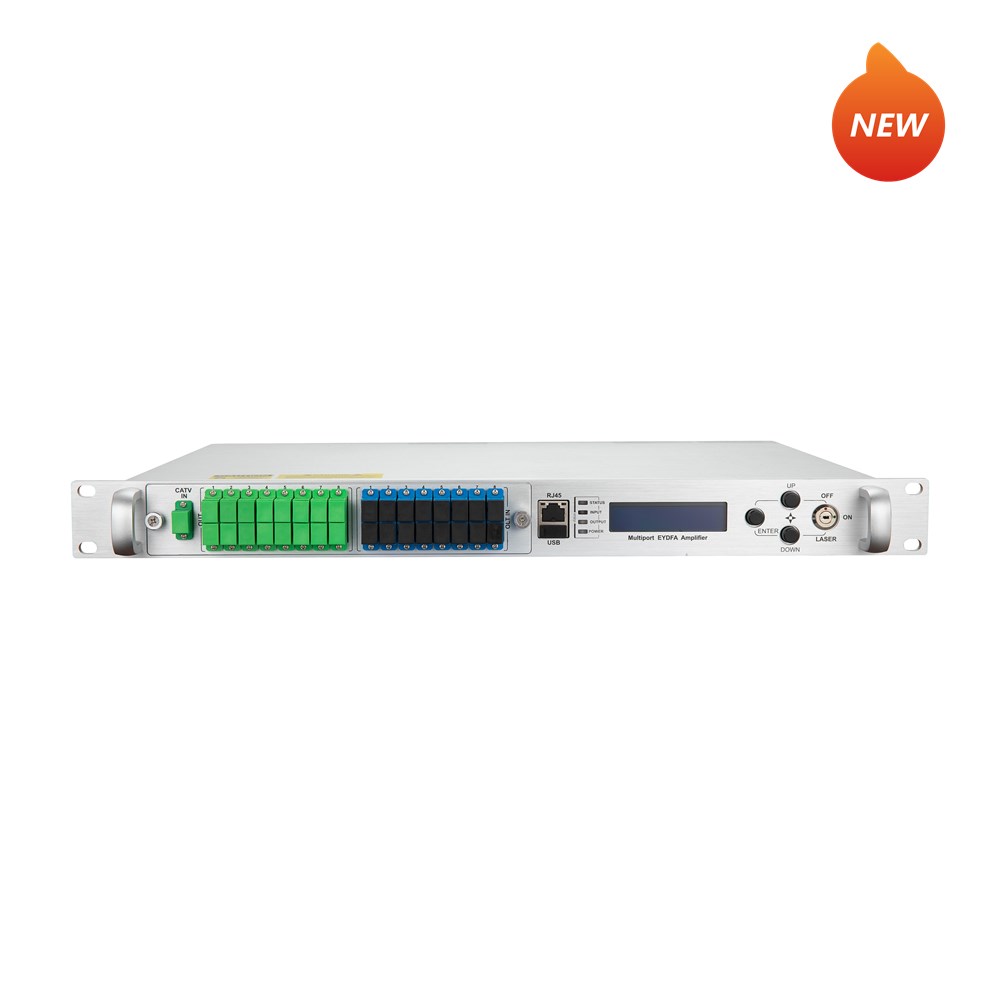

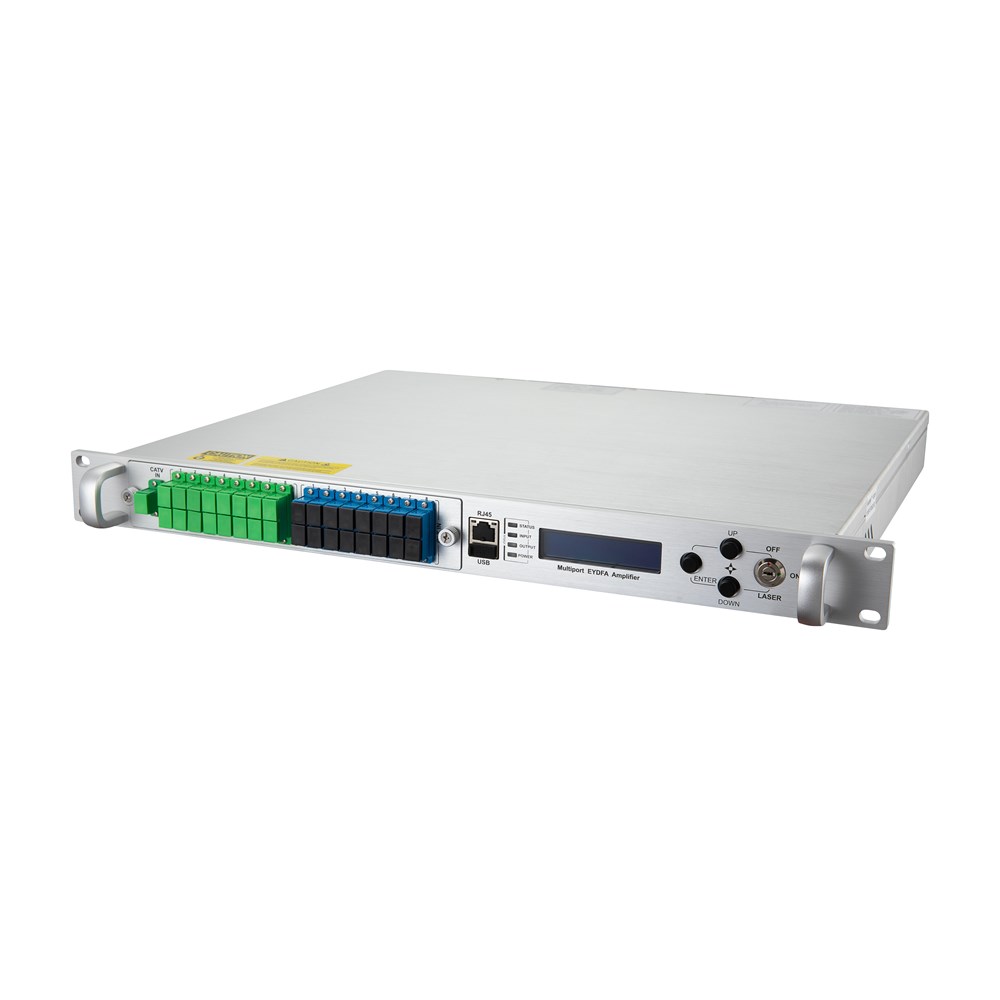

⑴ Output adjustable by buttons in the front panel or web manage, the range is
⑵ Maintenance function of one-time downward attenuation of 6dBm by buttons
⑶ Multi-ports output, can built in 1310/1490/1550WDM.

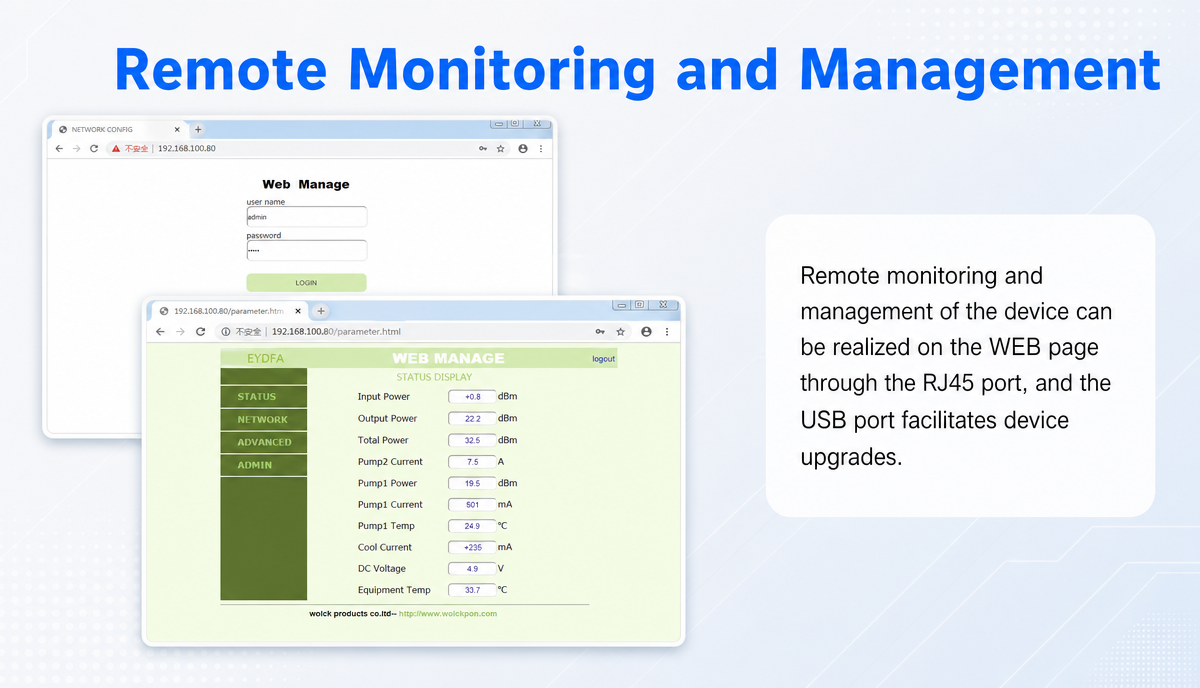

⑷ RJ45 port enables remote monitoring and management of devices on WEB pages and USB port facilitates device upgrade
⑸ The laser turn on/off by locks keys in the front panel.
⑹ Adopts JDSU or Oclaro Pump laser.
⑺ Led displays the working condition of the machine.

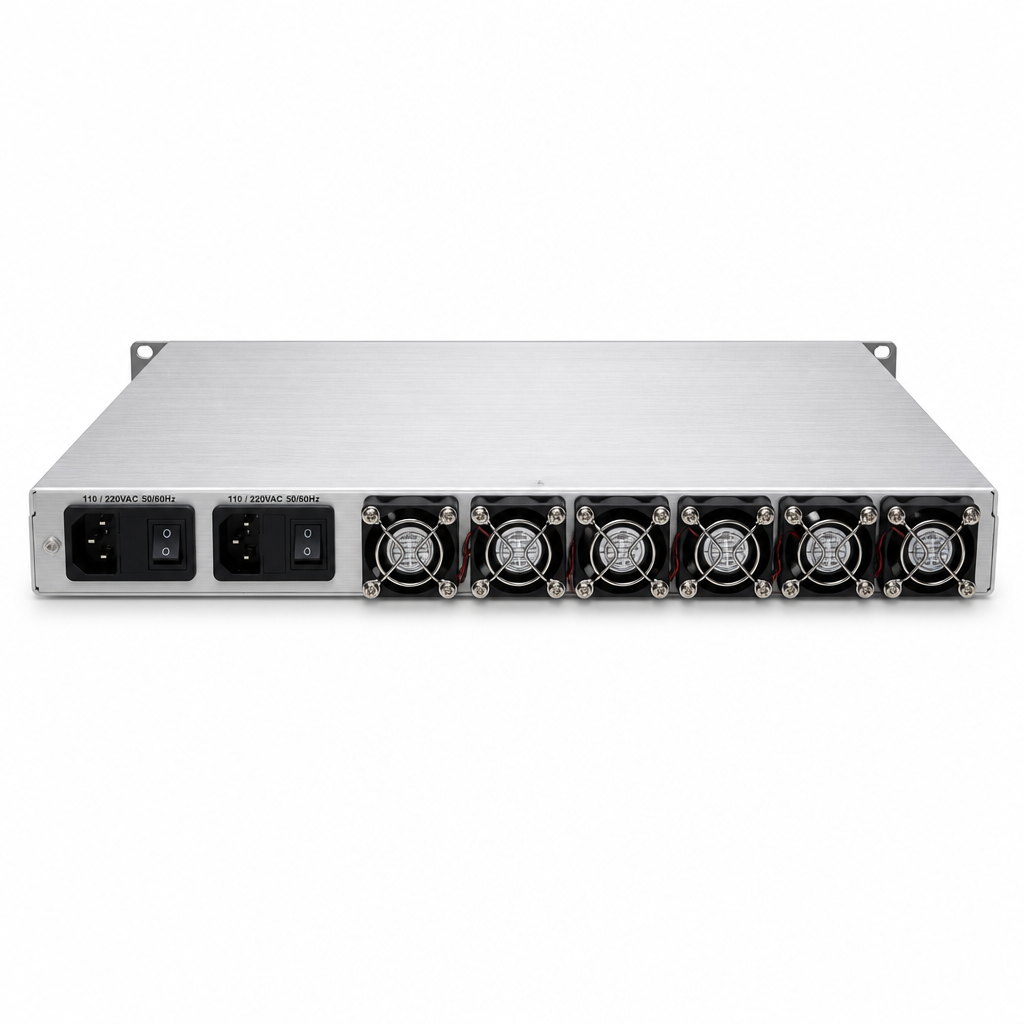

⑻ Dual power Cold backup, 110V\220V AC supply for choice.
|
Items |
Parameter |
|||||||||
|
Output (dBm) |
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
|
Output (mW) |
320 |
400 |
510 |
640 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
|
Input (dBm) |
-8/-5 ~ +10 |
|||||||||
|
Range or output adjustment (dBm) |
5 |
|||||||||
|
Wavelength (nm) |
1540 ~ 1565 |
|||||||||
|
Output stability (dB) |
<±0.3 |
|||||||||
|
Optical return loss (dB) |
≧45 |
|||||||||
|
Fiber connector |
FC/APC, SC/APC, SC/IUPC, LC/APC, LC/UPC |
|||||||||
|
Noise figure (dB) |
＜6.0 (input 0dBm) |
|||||||||
|
Connector type |
RJ45, USB |
|||||||||
|
Power consumption (W) |
≤50 |
|||||||||
|
Voltage (V) |
110VAC, 220VAC |
|||||||||
|
Working temp (℃) |
0 ~ 55 |
|||||||||
|
Size (mm) |
425(L)x482(W)x44(H) |
|||||||||
|
NW (Kg) |
4.3 |
|||||||||
